CNC coding for Engraving a fixed depth cutting project.

Gary Pope, Life Member of KDWC, has been documenting the use of his CNC 3018PRO Laser/Router unit in recent Ingrained Newsletter articles.   It is time to show how to use this machine's ENGRAVING facilities for fixed depth cutting operations.

Fixed Depth, is mentioned specifically, because most TEXT ENGRAVING simply involves cutting each character to a fixed depth (say 1.5mm deep) into the job for instance.    This is a totally different scenario to engraving a complex graphics image (like the KDWC Club Logo) where there needs to be layers, with each layer having deeper cuts that others, to give a depth of field feeling.      Gary's limited experience in this area has nonetheless been a real fun exercise of learning how to make cheeseboards with family names engraved thereon, and the fixed depth coding was staraight forward.



This article shows how to use free software tools linking a PC to a CNC 3018PRO hobby unit to produce engraving.

The tool bit

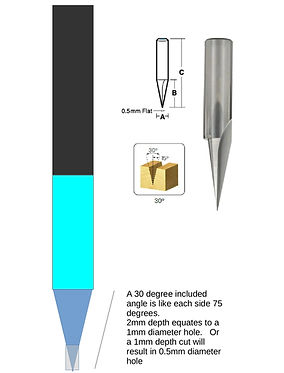

A common engraving tool bit is the '30 degree included angle V-Bit'.

It is a 3mm shaft bit, that typically mounts into a CR22 collet.

The cutting edge is a 75 degree (per side)  angled cutter

protruding 6m down the bit.  The mathematics are important.

The angled tip effective forms a conical shaped hole of 1mm

diameter, if the depth if cut is set to 2mm.

The bottom of the conical hole is zero diameter, and the

obvious hole at the surface level would be 1mm.

In other words, engraving anything to a depth of 2mm deep,

will result in seeing a 1mm wide cut in the surface of the job.

Gary has been experimenting with 10mm MDF board pre-painted

in tough 2-pac paint, making a really durable surface to cut thru.

Having say a white 2-pac finish, with exposed

sandy coloured MDF, allows for staining the MDF as

a contrasting color for the cut away engraving.

Solution

Two programs are needed,  running on say: Linux Mint v21.

1.   Inkscape v1.1.1  from www.inkscape.org

2.   UltimateCNC v3.2.2-FREE from ultimatecnc.softgon.nety

Data files.

1.  LibreOffice Writer can be used to prepare a desired TEXT, saved as a .JPG image

2.  Inkscape is used to import the JPG image and process it in readiness for G-COde, saved as .SVG file.

3.  Inkscape can export the Gcode  as  a .NGC file

4.  UltimateCNC program impots the .NGC file (containing lines of G-code)

     and controls the connected CNC Laser/Router via a USB cabled connection.

Instructions

Job Example:  engraving  "Frank Cheeseman"  onto an Acacia timber cheese platter.

Prepare Image of engraving.

Use Libre Writer with  FONT: "URW Chancery L"  72 Font Size exported as: JPG

then rotated 45 degrees and saved to a folder/file say:

ie: /spare/woodwork/CNC_Laser_Router_3018_PRO_Gary/Gary_CNC_projects/Frank_Cheeseman/

Process Image with Inkscape

Open up Inkscape and go to

       File ==> Document Properties
             and change size to say: 60m(W) "X" x 60mm (H) "Y"

             with Border Shadow Unticked so the image will just fit it with a bit left over.
             (after we rotate the logo about 30 degrees)

Go to File ==> Import xxxxxx.jpg as a linked file not embedded with

      DPI: From File, and
      Rendering Mode: None (Auto)

and shift the image nice and tightly inside the Document Properties frame.

(double-click the image to allow the corners to be used for rotating say about 30%)


Next: select the image in the document and go to

     Path ==> Trace Bitmap.

     Click "APPLY"   and   "CLOSE

This adds a new object to the document, the original image plus a bitmap version of it.

One is on top of the other so you can only see one of them.

Slide the top one to one side so you can see both and then select and delete the larger one.

Slide the other smaller one, the bitmap back onto the document in the correct place.

Now select:

      Path  ==> Object to Path.

Next:

      Path ==>  Dynamic Offset

Now go to

     Extensions  ==>  Gcodetools  ==> Tools library.

     I found that the only tool in the list that works for me is the Default one at the top.

     So select that one and

             Apply it.    and CLOSE.





A grey box parameter appears by your document.

Select the Text tool on the left and click on and change:

      the Diameter mm,   say: 1.0

                (or try 0.5 diameter for small logos)
      feed (speed)           say 200.0

      Penetration (depth of cut mm) as required.
          (This 'Z"-axis setting will be dealt with later)

      Step                      say 0.25mm  each increment step to reduce risk of cutting too deep, each PASS)

      You also need to add Gcode before path = M3 (start your tool spindle)

      and Gcode after path = M5 (stop your tool spindle) to activate your cutter.

select the bitmap image again,

      then:  Next Extensions ==> Gcodetools  ==> Orientation points.

      Leave it set to the default Orientation Type =2-points  mode and its settings.

      BUT set the overall depth (say minus!!!!  -1.00mm  overall)

      (try -0.750mm for small logos)

      APPLY  and CLOSE

And finally, Extensions  ==> Gcodetools  ==> Path to Gcode.

 (Click APPLY, only)      You'll notice 100's of cutting points now.

Save the NGC file (containing all the G-Code)

Following on from the last step above, firstly under the Preferences tab,

      set your location and filename where you want your generated Gcode file to be saved.

       ie:  default output filename: 2022_01_04_Frank_Cheeseman.ngc

       ie: /spare/woodwork/CNC_Laser_Router_3018_PRO_Gary/Gary_CNC_projects/Frank_Cheeseman

       AND: set the Z safe height for G00 to say 2.00 (mm)

Then click on the Path to Gcode <tab> ; again,

       and when there: click Apply to generate the file.

       then CLOSE.

       ignore the alleged error/warning:

Then, to check results of the .NGC file, go to your specified file from the step above

and open it in Notepad or gEDIT or similar text editor.

You should see all the required code needed to cut your image.

Edit it and remove the very first line containing "%"  and the same on the last line.

(Not sure why this command is there, as it flags an error when running UltimateCNC)

Save the Inkscape session as a   '.SVG file'

 ie:   2022_01_04_Frank_Cheeseman.svg

Time to process the SVG file on the CNC Laser using Ultimate CNC

Be aware of where the NGC file is,  for processing by UltimateCNC program.

Advanced:  If UltimateCNC is on another PC closer to the CNC Laser/Router (sayu in the shed)

and you are remotely controlling it, then perhaps use a remote PC tool like DWService.net

and upload the NGC file from your development PC to the CNC controlling PC.


Advanced:  Consider using a Smartphone ona stand, looking down the camera to the CNC machine,

for recording the activity of the CNC machine via say a meet.jit.si/xxxxx  meeting session, viewed remotely.


Start UltimateCNC program

Assuming the CNC Pro3018 Laser/router is connected via a local USB cable,

then connect the CNC via the serial port.

Typical setting is:

      Device:          ttyUSB0

      bps:               115200

      Data Bits:       8

      Parity:            None

      Flow Control:   None

On top left of Ultimate CNC  click the "+" symbol

        to OPEN the NGC file that contains all the G-code.

With UltimateCNC go to the 'Manual Control MENU'

       and manually position the head in a safe starting spot

        and set the ZERO position for XY    and  Z.
       Turn on the SPINDLE and observe this from the meet.jit.si meeting view....

       and use the GO HOME  button to observe the spindle move Z-AXIS up and down 2mm

Click on the RUN menu

and start engraving!

Resources

Refer to the following earlier editions of Ingrained Newsletter where the selection and setup of the CNC3018PRO Laser/Router was discussed and demonstrated.

Refer to OCT, NOV and DEC 2021 editions at: knoxwoodies.org.au/archives

What's Next?

Working on how to deal with VARIABLE DEPTH cutting using multiple layers.
